AQQA®compact: filter cassettes for greywater systems and home sewage treatment

our smallest filter cassettes with filter housing and aeration system ranging from 3,3 up to 8 m². For filter cassettes only, please see below.

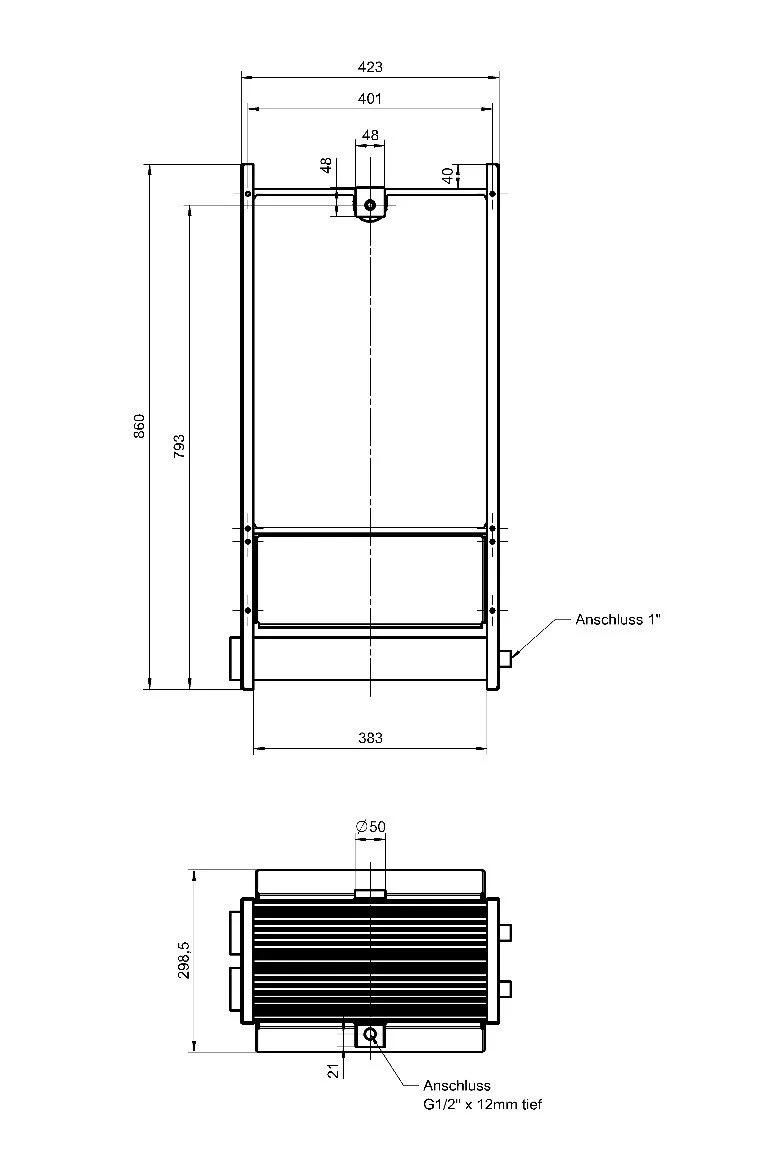

AQQA®8, 8 m² of membrane area. Total height 860 mm.

Technical data sheet AQQA®8

AQQA®4: 4 m² of membrane area. Total height 860 mm.

Technical data sheet AQQA®4

AQQA®4

AQQA®8

In some applications, especially for installations in cellars, the height must be minimized. Our compact series is made for these requirements.

AQQA®7 compact, 7 m² of membrane area. Total height 690 mm.

Technical data sheet AQQA®7 compact

AQQA®3.3 compact, 3,3 m² of membrane area. Total height 690 mm.

Technical data sheet AQQA®3.3 compact

Filter cassettes from 1,7 m² up to 8 m².

for those of you, who wish to desigh their own filter housing, we supply the membrane cassettes only. Please contact us for further details. Some examples:

AQQA®1.7, 270 mm height, 1,7 m²

AQQA®7, 490 mm height, 7 m²
